Technical data

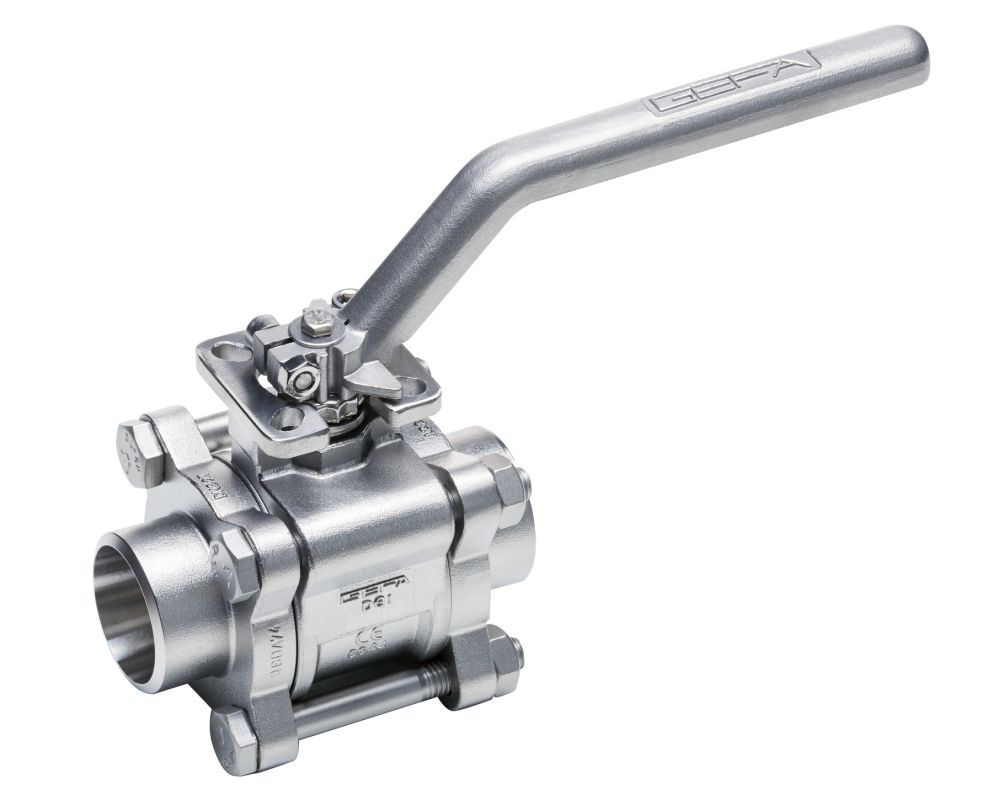

Ball valve stainless steel 1.4529 for applications in corrosive media (e.g. chlorides and dilute acids). With a PREN value between 42 and 47, suitable for seawater. 3-piece body, pressure class depending on the nominal size up to PN 125, floating ball, vaccum-thight.
- Sizes: DN 8 to DN 150
- Bore: full and reduce bore
- Special features: can be combined with all kinds of end connectors
- Mounting flange: DIN EN ISO 5211
- Test: DIN EN 12266 P10 P11 P12, Leakage rate A
